Compared with standard slewing bearings, light series slewing ring(profile bearing) is a good solution to simplify the structure and increase the capacity of the whole system. Slewing rings for water treatment equipment such as scraper bridge will often choose this light series type. Because it does not require high loading capacity but requires a lightweight and compact structure.
The light series slewing rings for water treatment has the same structure as an ordinary slewing ring. It is capable of bearing axial load, radial load, and tilting moment. Usually, it has mounting holes, lubrication holes and sealings to meet the different requirements of motors under various working conditions. Light series slewing ring features light weight, compact structure, flexible rotation, easy installation and easy maintenance.

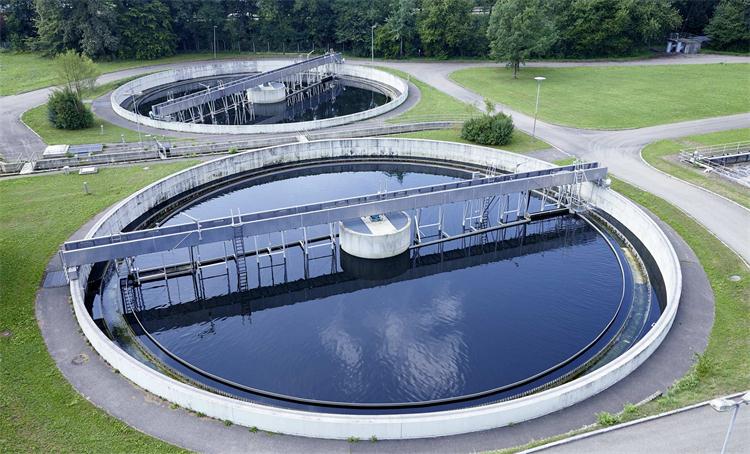

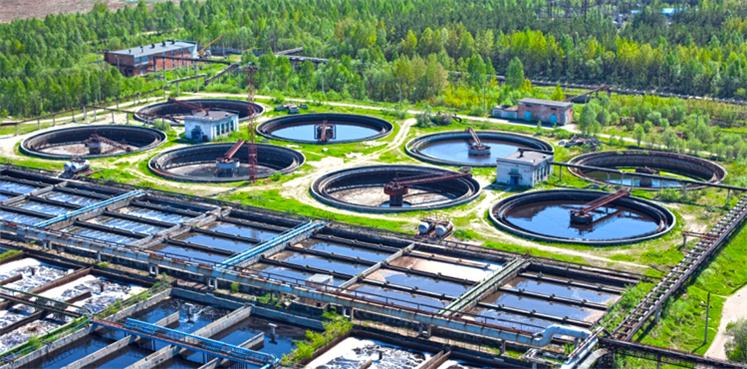

Slewing rings are widely applied in waste water treatment equipment, such as circular scraper clarifier.
|L6-16P9Z||23-0411-01||230.20.0400.013 Typ 21/520.0|
|L6-22P9Z||23-0541-01||230.20.0500.013 Typ 21/650.0|
|L6-25P9Z||23-0641-01||230.20.0600.013 Typ 21/750.2|
|L6-29P9Z||23-0741-01||230.20.0700.013 Typ 21/850.0|
|L6-33P9Z||23-0841-01||230.20.0800.013 Typ 21/950.0|
|L6-37P9Z||23-0941-01||230.20.0900.013 Typ 21/1050.0|
|L6-43P9Z||23-1091-01||230.20.1000.013 Typ 21/1200.0|
