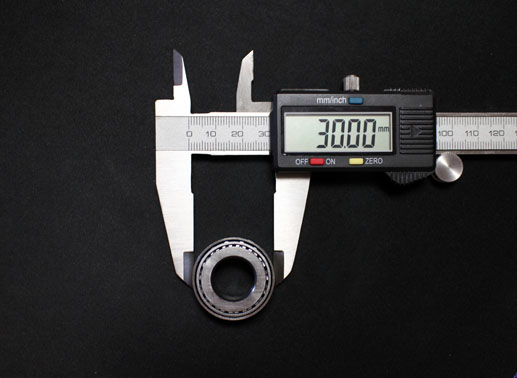

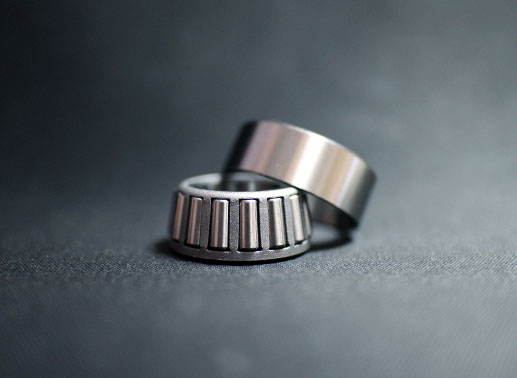

32102 Tapered roller bearing features:

1. High contact fatigue strength, compact load resistance.

2. Good wear resistance to maintain bearings accuracy and stability, ensure its long service life.

3. High  precision, P5 grade

4. Low noise during operation, V2 grade vibration.

5. Bearing width 13.1mm with lower deviation.

6. Custom design available upon request. (Custom size or material)

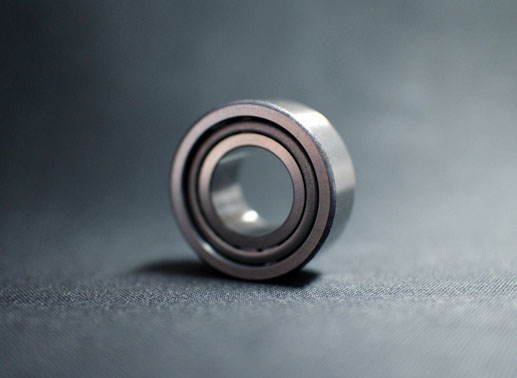

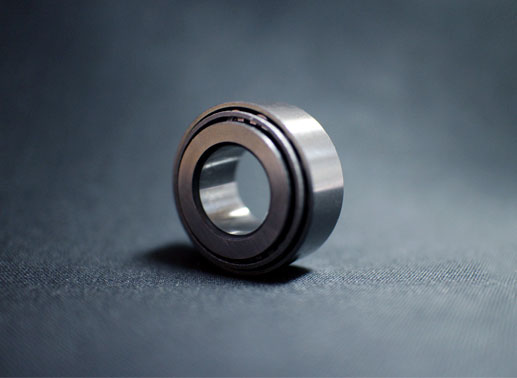

RV reducer Crankshaft Bearing Models

FAQ

1. Operating condition of tapered roller bearings
Tapered roller bearings mainly support radial loads, and can also take combined loads. They are usually applied in pairs, mainly for the front and rear wheel hubs, active cone wheels, differentials, reducers, and other transmission parts.

2. Rotation speed
Generally, the allowable speed of tapered roller bearing is 0.3-0.5 times the limit speed of the bearing in a properly installed, well-lubricated condition. Under normal circumstances, 0.2 times the limit speed is the most appropriate.

3. Allowable temperature
If tapered roller bearings are under normal loads, and the lubricant is sufficient and has high-temperature resistance. Generally, the bearing is allowed to operate at an ambient temperature of -30 °C ~ 150 °C.

32102 crankshaft bearing installation instructions:

1. Before installation, please clean bearing bracket, shaft, or other components,

make sure there is no burrs or rough edge.

2. Install the tapered roller bearing to the crank shaft, then install the locking clip.
