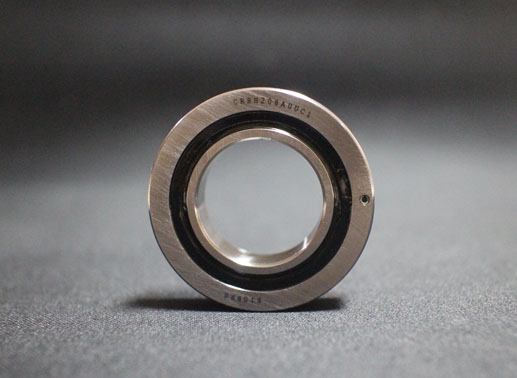

• CRBH208AUUC1 cross roller bearing
  • CRBH208 bearing made in China BRS Bearing
  • CRBH high rigidity cross roller ring
  • CRBH208 bearing structure
  • Part NO.

    Open type:CRBH208A

    With seal:CRBH208AUU

  • Dimension




  • Mounting

  • Basic Load Ratings



  • Equivalent Model

  • Features
  • Mounting
  • CRBH208A cross roller bearing detail specifications:

    Type of guide Roller
    Space retainer Yes
    Material GCr15
    Standard lubrication method Grease lubrication
    Oil hole Yes
    Sealing Oil seal at both sides
    Radial clearance T1, C1, C2
    Rotation accuracy P5/P4
    Working temperature -20℃ ~ 80℃


    CRBH208A bearing features:

    1. Integrated inner ring and outer ring, provide high stiffness.

    2. Sustain radial, axial and moment loads at the same time.

    3. High rigidity & rotation accuracy, compact structure reduce the influence by installation.

    4. Thin-section, space saving and reduce the overall weight of the device.


    crbh208a bearing lubricating hole

    Oil groove and Oil hole on the outer ring


    There are one oil groove and two lubircation holes on the outer ring diameter surface of CRBH series cross roller rings. All BRS bearings are pre-lubricated before delivery, if users have special requirements on lubrication system please notice us in advance.






    CRBH cross roller ring code

    Bearing tracking code


    BRS conduct full-inspection on all bearing products, the QC process of high precision bearings is especially stict. Each piece of bearing will be marked with a tracking code unless customer has other request. This tracking system will help us find the problem and solve the dispute in the shortest time once there is any question.




    CRBH crossed roller bearing catalog – BRS Bearing

  • CRBH208A(CRBH208AUU) bearing installation instructions

    Cautions: For crossed roller bearings, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.

    CRBH cross roller bearing installation

    Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.


    1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
    2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
