CSD-17
2019-03-30
-
Part NO.
Open type:CSD-17
-
Dimension
D:62mm
H:16.6mm
-
Mounting
d1:14mm
d2:11mm
-
Basic Load Ratings
-
Equivalent Model
Mass:0.3kg
- Features
- Mounting

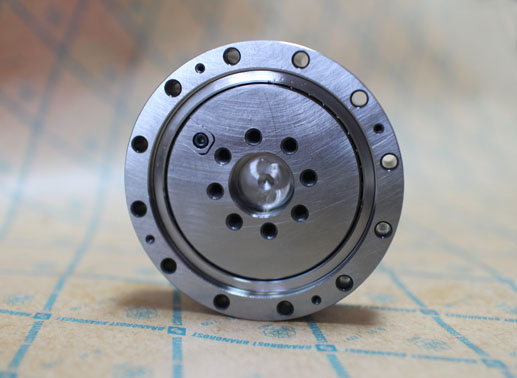

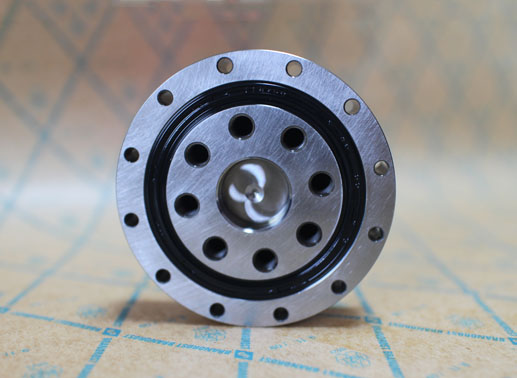

CSD-17 harmonic reducer bearing detail specifications:
Type of guide Roller Space retainer Yes Material GCr15 Standard lubrication method Grease lubrication Oil hole No Sealing Oil seal at one side Radial clearance -0.01 ~ 0 Rotation accuracy P5 Working temperature -20℃ ~ 80℃ CSD-17 output bearing features:
1. With high tilting rigidity, can quickly withstand heavy loads without further support.
2. Short overall length and light weight, compact structure, space saving.
3. High positioning accuracy, guarantee stable machine properties.
CSD-17 harmonic reducer bearing installation instructions:
1. Before installation, please clean bearing bracket, shaft, or other components,
make sure there is no burrs or rough edge.
2. Install the screws to connect crossed roller bearings with circular spline,
then install the screws to connect bearings with flex spline.
3. Install the wave generator and related components.
