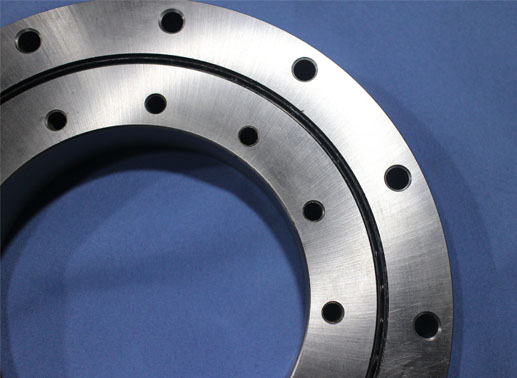

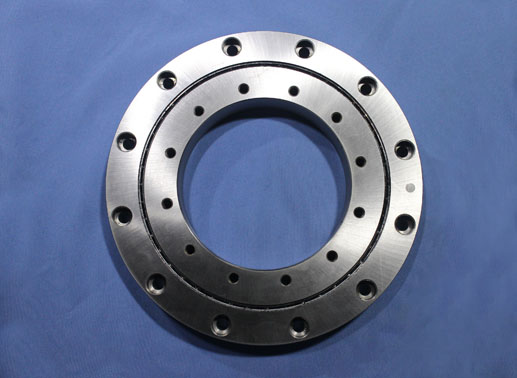

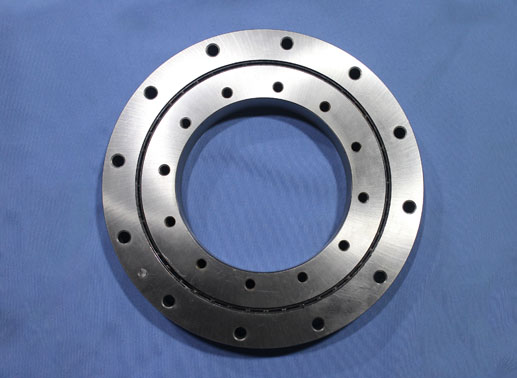

RU445X crossed roller bearing specifications:

RU445X bearing rotation accuracy standards

RU445X crossed roller bearing features:

1. Integrated inner ring and outer ring, provide high stiffness
2. Sustain radial, axial and moment loads at the same time
3. High rigidity & rotation accuracy, compact structure reduce the influence by installation
4. Miniaturization. Inner ring and outer ring with mounting holes, so it can be easily mounted to a device with bolts without need for housing and fixing plate, so surrounding parts of the bearing can be made compact, which contributes to miniaturization and weight saving of devices.

Check more RU series crossed roller bearings.

FAQ

1. I’m designing a prototype, can you produce according to my design?
Yes, BRS can produce custom design based on users requirements, but there will be a MOQ.

2. What is the hardness of RU178 bearings?
The hardness of standard type RU178 bearing is HRC 58~63.

3. How to select crossed roller bearings?
Crossed roller bearings performance has an irreplaceable role in mechanical equipment, so selecting bearings require careful consideration. BRS suggest users choose cross roller ring following the procedures shown below.

RU445X cross roller bearing installation instructions

RU445X Bearing Mounting Holes

Shoulder height

ds: 417mm

Dh: 473mm

PCD1 : 385mm

PCD2: 505mm

Inner ring mounting hole 24-M12 through

Outer ring mounting hole 24-φ14 drilled through, φ20 counter bore depth 13

Suffix X : Inner ring tapped hole (through hole)

Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.

Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.

1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts
3. If large number of radial load and/or moment is applied, it is recommended to prepare flange part as Fig.4.
