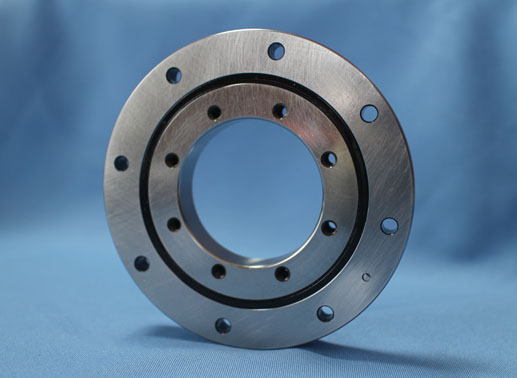

RU85 Detail Specifications:

Equivalent model: CRBF5515 bearing

RU85 crossed roller bearing features:

1. Integrated inner ring and outer ring, provide high stiffness
2. Sustain radial, axial, and moment loads at the same time
3. High rigidity & rotation accuracy, compact structure reduce the influence by the installation
4. Miniaturization. Inner ring and outer ring with mounting holes, so it can be easily mounted to a device with bolts without need for housing and fixing plate, so surrounding parts of the bearing can be made compact, which contributes to miniaturization and a weight saving of devices.

Check more RU series crossed roller bearings.

RU85UU CC0 Bearing Running Accuracy Inspection:

RU85 crossed roller bearing installation instructions

RU85 Bearing Mounting Holes

Shoulder height

ds: 79mm

Dh: 93mm

PCD1: 65mm

PCD2: 105mm

Inner ring mounting hole 8-M5 through

Outer ring mounting hole 8-φ5.5 drilled through, φ9.5 counterbore depth 5.4

(Customized mounting hole design available upon request.)

Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will deteriorate significantly.

Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.

1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts
3. If a large number of radial load and/or moment is applied, it is recommended to prepare the flange part as Fig.4.
