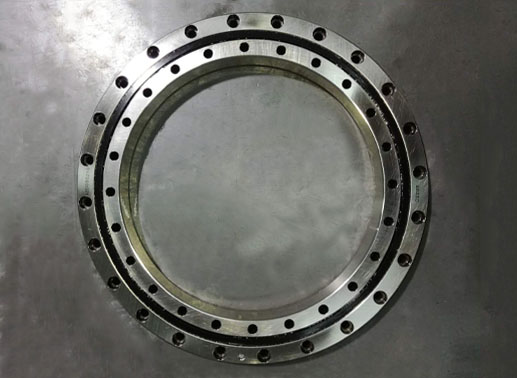

XSU080258 crossed roller bearing specifications:

More XSU series cross roller bearing models

XSU080258 crossed roller bearing features:

1. Thin section cross roller bearing, suited for mounting space that is very limited.

2. Support high radial loads, moderate axial loads and tilting moment loads.

3. High rigidity & running accuracy.

4. Easy installation, bearings can be screw mounted directly to the adjacent construction.

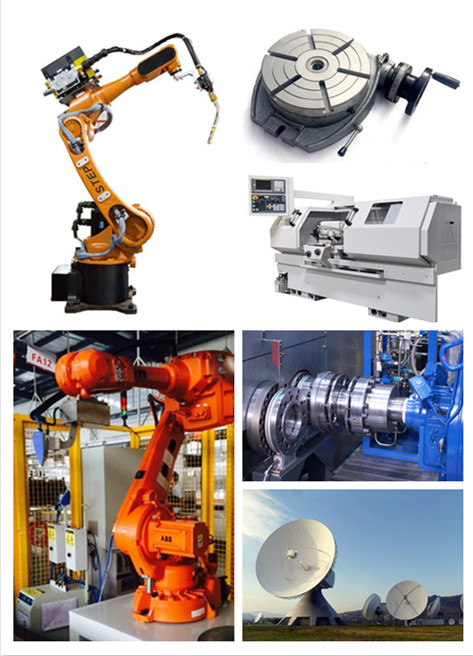

Application of XSU080258 bearing

XSU080258 bearing is slim type thin section crossed roller ring with solid-one piece inner and outer ring, besides, its with mounting holes, so very convenient to arrange installation. This bearing can be applied in limited mounting space, which require high rotation accuracy of both inner and outer ring. Such as robots base, robot joints, precision turntables, medical equipment, etc.

XSU080258 cross roller slewing bearing installation instructions

XSU080258 bearing mounting size:

Inner ring Li: 235mm

Mounting hole: 24-φ6.8, counter bore hole φ11 depth 6.8, equally spaced

Outer ring La: 280mm

Mounting hole: 24-φ6.8, counter bore hole φ11 depth 6.8, equally spaced

1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.

2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts.

3. If large number of radial load and/or moment is applied, it is recommended to prepare flange part as Fig.4.
