01 0555 01
  • 01 0555 01 slewing bearing

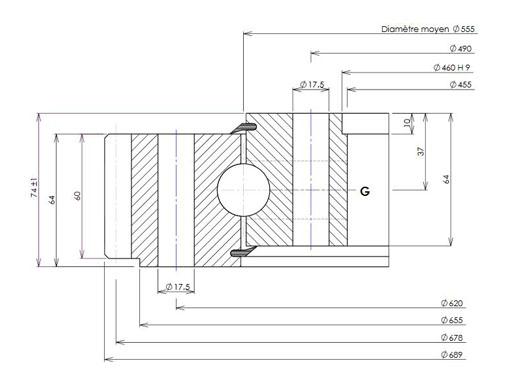

  • 01 0555 01 slewing bearing structure
  • Part NO.

    Open type:01 0555 01

  • Dimension




  • Mounting



  • Basic Load Ratings

  • Gear Teeth



  • Equivalent Model

  • Features
  • Mounting
  • 01 0555 01 slewing bearing detail specifications:

    Rolling Elements Ball
    Space retainer Yes
    Material 42CrMo / 50Mn / Customized
    Standard lubrication method Grease lubrication
    Lubrication hole Yes
    Sealing NBR sealing at both sides
    Raceway Hardness HRC 55 ~ 60
    Working temperature -25℃ ~ 70℃


    01 0555 01 slewing bearing features:

    1. Support high radial, axial loads and tilting moment at ralatively high speed.

    2. Robust structure, high load carrying capacity and stiffness.

    3. Easy installation, with mounting holes on both inner and outer ring, with grease nipples, convenient to arrange maitenance.

    4. Common application including cranes, excavators, conveyors, rotary tables, etc.

  • 01 0555 01 four point contact ball bearings installation instructions


    VLU200414 slewing ring mounting instruction

    1. Make sure the mounting surface is flat and clean, and free from burrs or

    rough edge.


    2. The unhardened zone is marked with an “S” on the slewing ring, it must be positioned outside the main load-carrying areas.


    3. Commissioning of the slewing ring under sufficient load.

    slewing ring bolts fastening order


    4. Adjust the backlash of gear and recheck it after final tightening of the bearing.


    5. Fastening bolts. Place the bearing onto connecting structure and align the screw holes. Screw all the bolts in the holes first and follow the order as shown in diagram when tightening bolts in diagonally opposite sequence. Do not tighten bolts randomly.


    6. Check the installation by rotating the assembled bearing arrangement. The torque should not show any excessive variation or “tight spots” during rotation.
