CSF-CSG Harmonic Reducer Bearing – High Precision Crossed Roller Bearing

BRS started to manufacture output bearings for CSF/CSG series harmonic drive units since 2010. Its outer ring is separable and inner ring adopt integrated structure. Both inner ring and outer ring are processed with many precision holes for connecting with working parts.

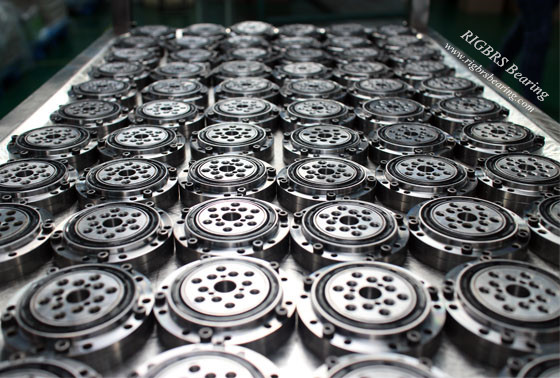

CSF-CSG Harmonic Reducer Bearing

CSF|CSG Harmonic Reducer Output Bearing Features

1. Integrated inner ring with split outer ring
2. Sustain radial, axial and moment loads at the same time
3. High stiffness, high rotation accuracy and high loading capacity
4. Easy installation and maintenance
5. Small size and light weight
6. Customized size and structure available

Applications

CSF|CSG harmonic reducer crossed roller bearing has a wide range of application in electronics industry, industrial automation, industrial robots, packaging machines, printing machines, and medical equipments.

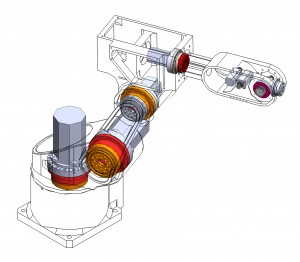

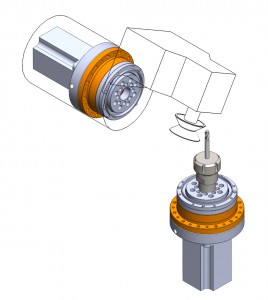

output bearings on milling_machine robots joint bearing

Quality Control

BRS has strict QC management system on CSF-CSG harmonic reducer bearing products. Each piece of bearing will be inspected before delivery, and inspection report is  provided together with products. We only choose high quality raw material (GCr15 bearing steel) and our porduction process is in fully compliance with environmental protection standard of RoHS.

CSF-CSG Harmonic Reducer Bearing QC RIGBRS Bearing

CSF|CSG Harmonic Reducer Bearing Models

Part NO. Dimension(mm) Mass (kg)
d D H d1 d2 D1
CSF14-XRB 9 55 16.5 14.5 23 49 0.25
CSF17-XRB 10 62 16.5 17.5 27 56 0.27
CSF20-XRB 14 70 16.5 24 32 64 0.36
CSF25-XRB 20 85 18.5 30 42 79 0.65
CSF32-XRB 26 112 22.5 40 55 104 1.1
CSF40-XRB 24/32 126 24 50 68 117 1.6
CSF50-XRB 32/40 157 31 60 84 147 3.6
CSF65-XRB 44/52 210 39 80 110 198 7.8
