232.20.0900.013
2020-07-07
-
Part NO.
Open type:232.20.0900.013
-
Dimension
di:841.6mm
Da:1048mm
H:56mm
-
Mounting
Li:905mm
La:1020mm
-
Basic Load Ratings
Cr:-kN
Cor:-kN
-
Gear Teeth
m:8mm
z:107mm
-
Equivalent Model
Mass:65.8kg
- Features
- Mounting

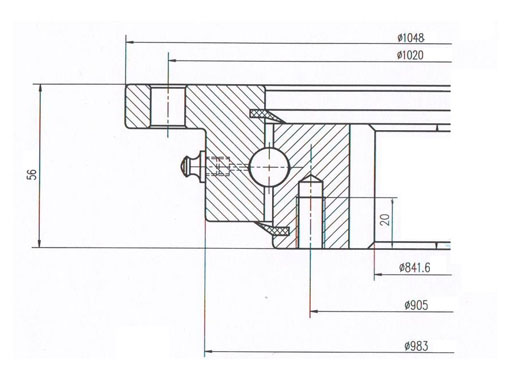

232.20.0900.013 slewing bearing specifications:
Type of guide Ball Gear teeth Internal Space retainer Yes Material 42CrMo Standard lubrication method Grease lubrication Oil hole Yes Sealing NBR sealing at both sides Working temperature -20℃ ~ +80℃ Equivalent models: VLI200944-N, 22-0941-01, RKS.22 0941

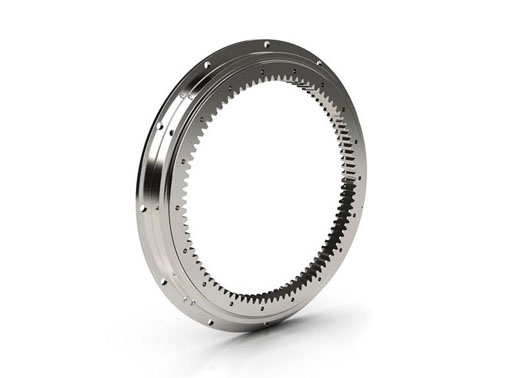

232.20.0900.013 slewing ring bearing features:
1. Thin cross-section light series ball slewing ring, save mounting space and reduce weight.
2. Support radial loads, axial loads and tilting moment loads at same time.
3. Stable and smooth rotation due to grinding finished raceway and surface.
4. Easy installation, bearings can be screw mounted directly to the adjacent construction.
More slewing bearing modes related to 232.20.0900.013 bearing
Part No. Da (mm) Di (mm) H (mm) La (mm) Li (mm) Weight (kg) 232.20.0400.013
Typ 21/520.2518 326.5 56 490 375 27.1 232.20.0500.013
Typ 21/650.2648 445.2 56 620 505 36.9 232.20.0600.013
Typ 21/750.2748 547.2 56 720 605 43.7 232.20.0700.013
Typ 21/850.2848 649.2 56 820 705 51.1 232.20.0800.013
Typ 21/950.2948 737.6 56 920 805 61.6 232.20.0900.013
Typ 21/1050.21048 841.6 56 1020 905 65.8 232.20.1000.013

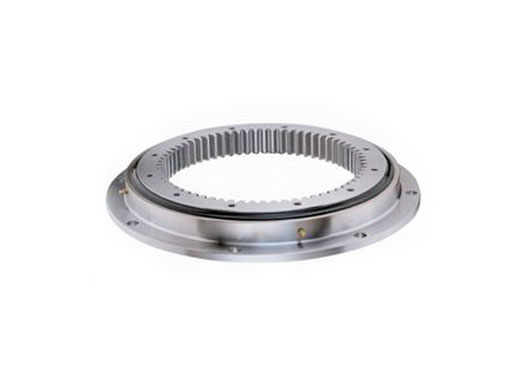

Typ 21/1200.21198 985.6 56 1170 1055 80.7 232.20.0900.013 four point contact ball slew bearing installation instructions
1. Make sure the mounting surface is flat and clean, and free from burrs or
rough edge.
2. The unhardened zone is marked with an “S” on the slewing ring, it must be positioned outside the main load-carrying areas.
3. Commissioning of the slewing ring under sufficient load.
4. Adjust the backlash of gear and recheck it after final tightening of the bearing.
5. Fastening bolts. Place the bearing onto connecting structure and align the screw holes. Screw all the bolts in the holes first and follow the order as shown in diagram when tightening bolts in diagonally opposite sequence. Do not tighten bolts randomly.
6. Check the installation by rotating the assembled bearing arrangement. The torque should not show any excessive variation or “tight spots” during rotation.
