244mm Small Slewing Bearing EXQ-10-180 Detail Specifications:

BRS customized slewing bearing EXW-10-189 is four point contact ball slewing ring with external gear. Its structure is similar to INA VA series slewing bearing, but with different dimension and mounting holes. BRS can produce custom design based on users requirements, free design service also available.

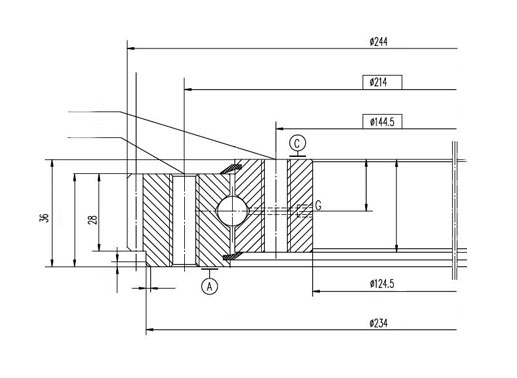

Customized small slewing bearing 124.5x244x36mm features:

1. Gear teeth on the outer ring.

2. Support high radial loads, moderate axial loads and tilting moment loads.

3. High rigidity & running accuracy.

4. Easy installation, bearings can be screw mounted directly to the adjacent construction.

Slewing bearing external gear installation instructions

1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts.
3. If large number of radial load and/or moment is applied, it is recommended to prepare flange part as Fig.4.
