83x164x19 slewing bearing specifications:

Check more small slewing bearing with external gear models.

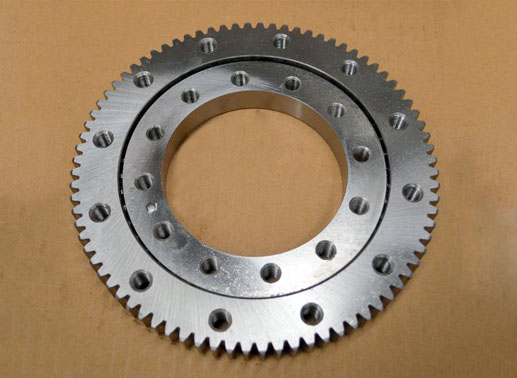

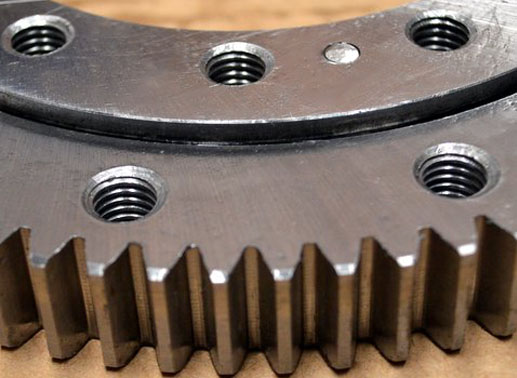

83x164x19mm slewing bearing features:

1. Thin section small external gear slewing ring.

2. Support radial loads, axial loads and tilting moment loads at the same time.

3. High rigidity & running accuracy.

4. Grinding finishing bearing surface and gear teeth, ensure bearings’ lower friction, higher rotation accuracy and longer service life.

5. Easy installation with the mounting holes on both inner and outer ring.

FAQ

1. What is the MOQ for this model BRS-EQ-120?
There is no MOQ for bearing models in stock, and low MOQ for custom design. Please contact us for details.

2. What’s the service life of this slewing bearing?
Regarding bearings service life, the theoretical value and actual value are often different. Need to be calculated based on detailed working conditions, material, processing technique, and maintenance will also affect slewing bearings service life. BRS provide one year warranty for bearings under common working conditions, if your application environment is complex please contact us for suggestions.

BRS-EQ-120 small slewing bearing installation instructions

1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts.
3. If large number of radial load and/or moment is applied, it is recommended to prepare flange part as Fig.4.
