NXR-5-67
2019-12-25
-
Part NO.
Open type:NXR-5-67
-
Dimension
di:42mm
Da:89mm
H:11mm
-
Mounting
Li:53mm
La:83mm
-
Basic Load Ratings
Cr:-kN
Cor:-kN
-
Gear Teeth
m:-mm
z:-mm
-
Equivalent Model
Mass:1kg
- Features
- Mounting

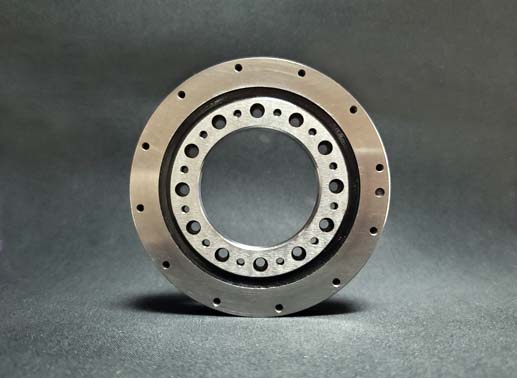

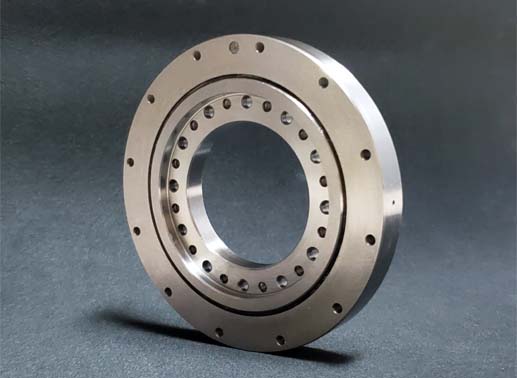

89mm Crossed Roller Bearing Detail Specifications:
Type of guide Roller Space retainer Yes Material GCr15 Standard lubrication method Grease lubrication Oil hole Yes Sealing Sealed on one side Surface treatment None Radial clearance -0.01 ~ 0 Rotation accuracy P4 Working temperature -15℃ ~ 80℃ NXR-5-67 customized cross roller bearing features:
1. Solid one-piece inner ring and outer ring type, provide high stiffness and reduce the possible deviation caused by mounting error.
2. Sustain radial, axial loads at the same time, as well as tilting moment.
3. Assembled with high precision cylindrical rollers and high quality space retainers, with special designed raceway, bearings can provide high rotation accuracy and loading capacity.
4. Customized mounting holes, some with counterbore holes and some with threaded holes, easy to install and remove.
5. One side with seals and the other side is open type, meet customers special requirements on lubricating system.89mm Crossed Roller Bearing Custom Design Mounting Dimensions:

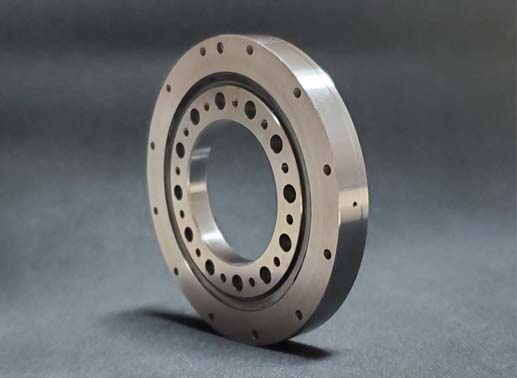

NXR-5-67 RIGBRS Customized Cross Roller Bearing Mounting Size:
PCD of inner ring : 53mm
PCD of outer ring: 83mm

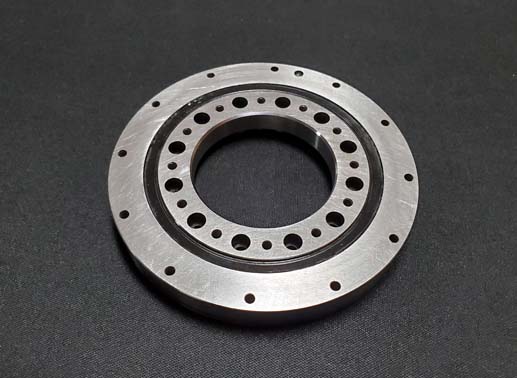

This customized cross roller bearing product precision is P4, and with multiple mounting holes on inner and outer rings, can be directly connected to the equipment without the help of fixing plate. Its design and structure is similar to RU high rigidity type cross roller bearing, so its mounting method is same with RU crossed roller bearing.
