RA10008
2019-04-09
-
Part NO.
Open type:RA10008
-

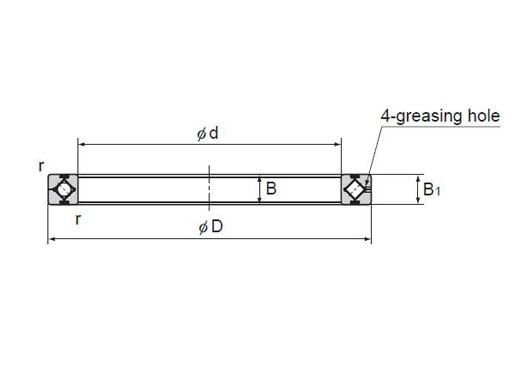

Dimension
d:100mm
D:116mm
B:8mm
-
Mounting
-
Basic Load Ratings
Cr:7.15kN
Cor:13.9kN
-
Equivalent Model
CRBS1008
Mass:0.14kg
- Features
- Mounting
RA10008 cross roller bearing specifications:
Type of guide Roller Space retainer Yes Material GCr15 Standard lubrication method Grease lubrication Oil hole Yes Sealing Oil seal at both sides Radial clearance CC0, C0 Rotation accuracy Radial/axial runout below 15μm Working temperature -20℃ ~ 80℃ * RA10008UU is two sides sealed type.
More RA cross roller bearing models
RA10008 bearing accuracy and clearance selection
Item Runout Tolerance Standards Higher Accuracy Radial runout of inner ring 15μm Available upon request Axial runout of inner ring 15μm Available upon request Item CC0 C0 Radial clearance -0.008~0μm 0~0.015μm RA10008|RA10008UU cross roller bearing features:
1. Integrated inner ring with a separable outer ring.
2. Sustain radial, axial, and moment loads at the same time.
3. High rigidity & running accuracy.
4. Ultra-thin section, space-saving and reduce the overall weight of the device.
Rotation accuracy test of RA10008 bearing inner ring
RA10008 crossed roller bearing installation instructions
Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will deteriorate significantly.
Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.
1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
3. Slightly loosen the fixing bolts of bearings outer ring during mounting.
