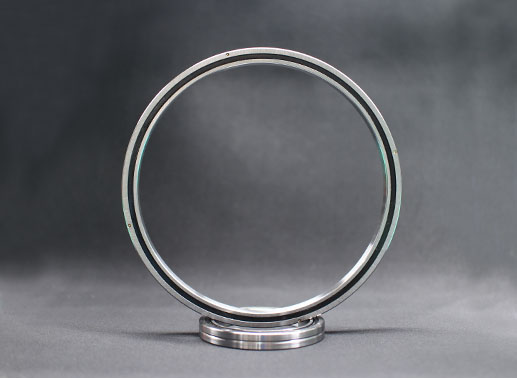

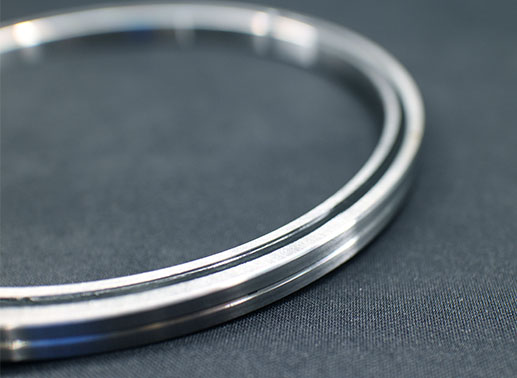

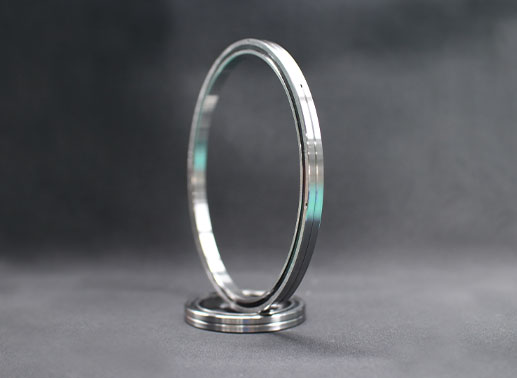

• RA13008 cross roller bearing
  • THK RA13008 bearing
  • RA13008 bearing supply

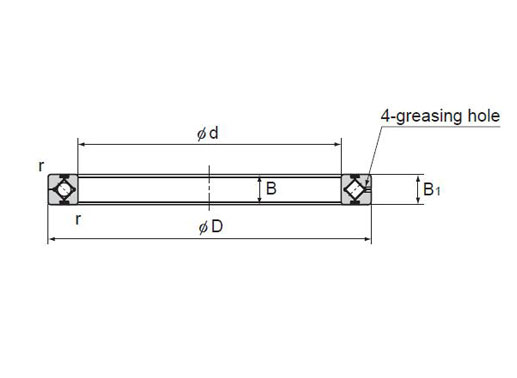

  • RA13008UUCC0 bearing structure
  • Part NO.

    Open type:RA13008

  • Dimension




  • Mounting

  • Basic Load Ratings



  • Equivalent Model


  • Features
  • Mounting
  • RA13008 cross roller bearing specifications:

    Type of guide Roller
    Space retainer Yes
    Material GCr15
    Standard lubrication method Grease lubrication
    Oil hole Yes
    Sealing Oil seal at both sides
    Radial clearance CC0, C0
    Rotation accuracy Radial/axial runout below 25μm
    Working temperature -20℃ ~ 80℃

    * RA13008UU is two sides sealed type.

    More RA cross roller bearing models


    RA13008|RA13008UU crossed roller bearing features:

    1. Integrated inner ring with a separable outer ring.

    2. Sustain radial, axial, and moment loads at the same time.

    3. High rigidity & running accuracy.

    4. Ultra-thin section, space-saving and reduce the overall weight of the device.


    RA13008 UU CC0 cross roller bearing rotation accuracy test


    1. What is the MOQ for this model RA13008?
    There is no MOQ for bearing models in stock, and low MOQ for a custom design. Please contact us for details.


    2. Can I get a drawing of this model?
    Yes, we provide drawing for standard bearing models, and can also produce custom design according to your drawing.


    3. How to lubricate RA series crossed roller bearings?
    Unless otherwise stated, all BRS made RA cross roller bearings are filled with the proper amount of complex lithium grease before delivery. So users can directly put bearings into the application after receiving goods. Then after 1~6 months of operation, bearings should be added with proper grease through grease holes on the outer ring based on working conditions.

  • RA13008 cross roller bearing installation instructions

    Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.

    Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.


    1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
    2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
    3. Slightly loosen the fixing bolts of bearings outer ring during mounting.
