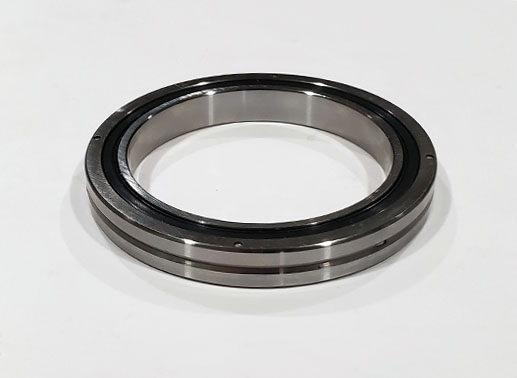

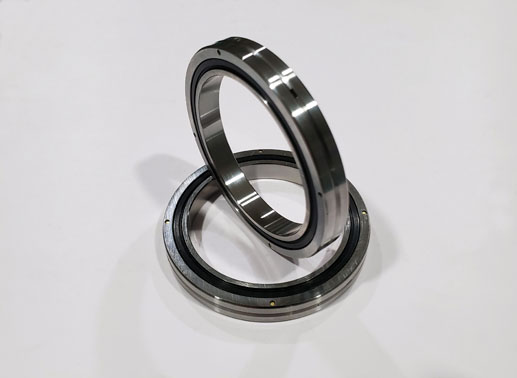

• RA6008 cross roller bearing
  • THK RA6008 bearing

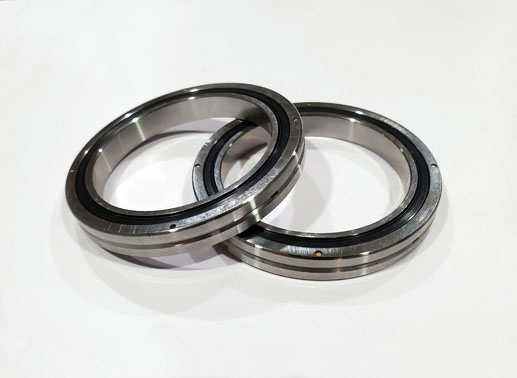

  • RA6008UUCC0 bearing made in China
  • RA6008 cross roller bearing structure
  • Part NO.

    Open type:RA6008

  • Dimension




  • Mounting

  • Basic Load Ratings



  • Equivalent Model


  • Features
  • Mounting
  • RA6008 cross roller bearing specifications:

    Type of guide Roller
    Space retainer Yes
    Material GCr15
    Standard lubrication method Grease lubrication
    Oil hole Yes
    Sealing Oil seal at both sides
    Radial clearance CC0, C0
    Rotation accuracy Radial/axial runout below 13μm
    Working temperature -20℃ ~ 80℃

    * RA6008UU is two sides sealed type.

    More RA cross roller bearing models

    Design features of RA6008/RA6008UU cross roller bearings

    Both inner ring and outer ring of RA6008 crossed roller bearing are solid one-piece type, with integrated raceway, outer ring has a loading plug for assembling rollers. The width of RA series slewing bearing is the thinnest among RA/RB/RU/RE series cross roller ring. So this series is specially suited for limited space, and applications which require rotation accuracy of both inner and outer ring.


    RA6008 crossed roller bearing advantages:

    1. Integrated inner ring with separable outer ring.

    2. Sustain radial, axial and moment loads at the same time.

    3. High rigidity & running accuracy.

    4. Ultra-thin section, space saving and reduce the overall weight of the device.


  • RA6008 crossed roller bearing installation instructions

    Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.

    RA6008 crossed roller bearing mounting

    Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.


    1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
    2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
    3. Slightly loosen the fixing bolts of bearings outer ring during mounting.
