RB2508
2019-04-08

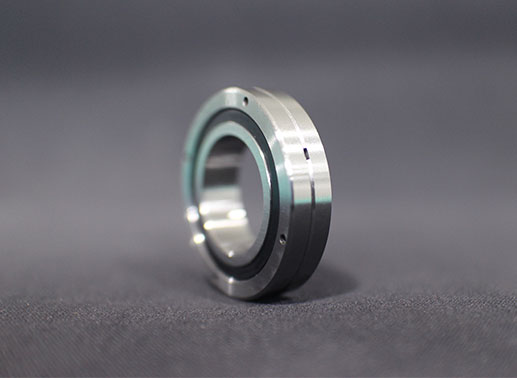

  • RB2508 crossed roller bearing

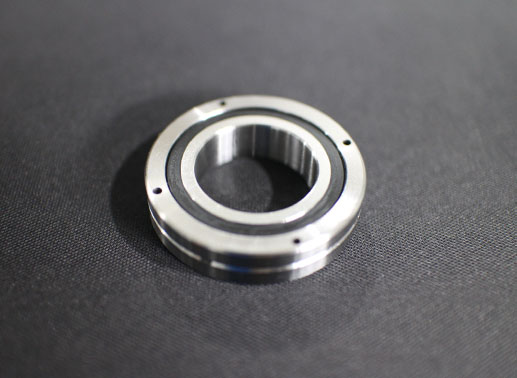

  • RB2508 bearing China

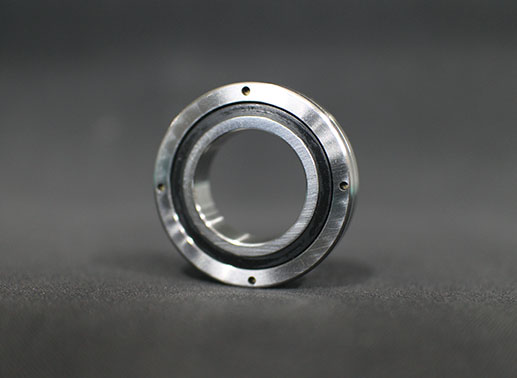

  • THK RB2508 bearing
  • RB2508 bearing structure
  • Part NO.

    Open type:RB2508

  • Dimension

    d:25mm

    D:41mm

    B:8mm

  • Mounting

  • Basic Load Ratings

    Cr:3.63kN

    Cor:3.83kN

  • Equivalent Model

    IKO:-

    NSK:NRXT2508

Mass:0.05kg
  • Features
  • Mounting
  • RB2508 Crossed roller bearing specifications:

    Type of guide Roller
    Space retainer Yes
    Material GCr15
    Standard lubrication method Grease lubrication
    Oil hole Yes
    Sealing Oil seal at both sides
    Radial clearance CC0, C0, C1
    Rotation accuracy P5/P4
    Working temperature -20℃ ~ 80℃

    Check more RB crossed roller bearing models



    RB2508 cross roller bearing features:

    1. Integrated inner ring with separable outer ring, clearance can be adjusted.

    2. Sustain radial, axial and moment loads at the same time.

    3. High running accuracy supplied with normal clearance, little clearance or even under a pre-load.

    4. Stable rotation, spacer retainer prevents rollers from from skewing, thus eliminates friction between rollers, and avoid increasing of the rotation torque.



  • RB2508 cross roller ring installation instructions

    Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will deteriorate significantly.

    RB2508 bearing mounting

    Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.



    1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
    2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
    3. Slightly loosen the fixing bolts of bearings’ outer ring during mounting.
