• SHF-50 harmonic gear reducer bearing
  • SHF50 harmonic reducer output bearing
  • SHF50 SHG--50 housed units cross roller bearing
  • SHF50 harmonic reducer bearing structure
  • Part NO.

    Open type:SHF50-XRB

  • Dimension




  • Mounting



  • Basic Load Ratings

  • Equivalent Model

  • Features
  • Mounting
  • SHF-50 harmonic gear reducer bearing specifications:

    Type of guide Roller
    Space retainer Yes
    Material GCr15
    Standard lubrication method Grease lubrication
    Oil hole No
    Sealing Framework oil seal at one side
    Axial clearance -0.01 ~ 0
    Radial clearance -0.01 ~ 0
    Rotation accuracy P5
    Working temperature -20℃ ~ 80℃

    More SHF harmonic reducer crossed roller bearing models.

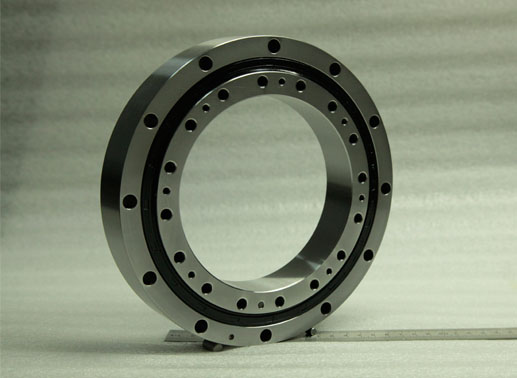

    SHF50-XRB output bearing features:

    1. Integrated inner ring and outer ring.

    2. Sustain radial, axial and moment loads at the same time.

    3. High stiffness, high rotation accuracy and high loading capacity.

    4. Ultra-thin and light weight, easy installation.

    5. Hollow shaft structure, wires can pass through easily.

    6. Specially designed framework oil seals with good sealing effect, ensure the cleaness of working envioronment.

    7. Precision machined thread holes provide smooth mounting experience.

    8. Higher loading capacity version(full complement cylindrical rollers) available upon request.

  • SHF-50 harmonic reducer bearing installation instructions:

    SHF50 gear units cross roller bearing installation


    1. Before installation, please clean bearing bracket, shaft, or other components,

    make sure there is no burrs or rough edge.


    2. Install the screws to connect crossed roller bearings with circular spline,

    then install the screws to connect bearings with flex spline.


    3. Install the wave generator and related components.
