VSU200414
2019-11-19
  • VSU200414 slewing bearing
  • vsu200414 slewing ring price

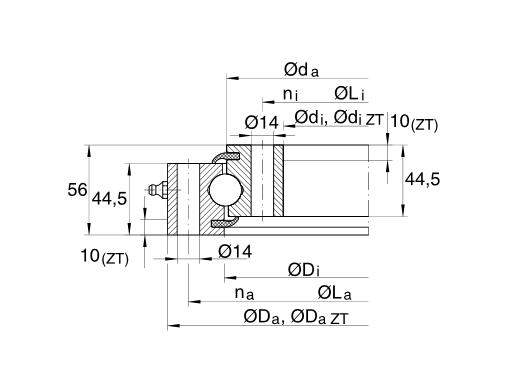

  • VSU200414 slewing bearing structure
  • Part NO.

    Open type:VSU200414

  • Dimension

    di:342mm

    Da:486mm

    H:56mm

  • Mounting

    Li:368mm

    La:460mm

  • Basic Load Ratings

    Cr:111kN

    Cor:248kN

  • Gear Teeth

    m:-mm

    z:-mm

  • Equivalent Model

Mass:29kg
  • Features
  • Mounting
  • VSU200414 bearing detail specifications:

    Rolling Elements Ball
    Space retainer Yes
    Material GCr15 Bearing steel / 50Mn
    Standard lubrication method Grease lubrication
    Lubrication hole Yes
    Sealing NBR sealing at both sides
    Radial clearance 0 ~ 0.3mm
    Working temperature -20℃ ~ 40℃



    VSU200414 slewing bearing features:

    1. Can support axial, radial and tilting moment loads at the same time.

    2. Compact structure and light weight.

    3. Easy installation, with through holes or threaded holes for fixing screws.

    4. Professional Surface treatment such as blackening, galvanization(zinc-plating,zinc coating), antisepticize, corrosion prevention, rotproof, antiseptic, anticorrosive painting, etc. Ensure BRS Bearings function well under extreme working conditions.

  • VSU200414 four point contact bearing installation instructions



    VLU200414 slewing ring mounting instruction

    1. Make sure the mounting surface is flat and clean, and free from burrs or

    rough edge.



    2. The unhardened zone is marked with an “S” on the slewing ring, it must be positioned outside the main load-carrying areas.



    3. Commissioning of the slewing ring under sufficient load.

    slewing ring bolts fastening order



    4. Adjust the backlash of gear and recheck it after final tightening of the bearing.



    5. Fastening bolts. Place the bearing onto connecting structure and align the screw holes. Screw all the bolts in the holes first and follow the order as shown in diagram when tightening bolts in diagonally opposite sequence. Do not tighten bolts randomly.



    6. Check the installation by rotating the assembled bearing arrangement. The torque should not show any excessive variation or “tight spots” during rotation.
