XU080264
2019-04-24
  • XU080264 crossed roller bearing
  • XU080264 slewing bearing
  • INA XU080264 bearing

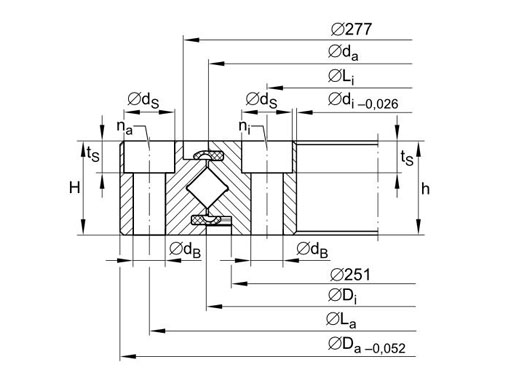

  • XU080264 crossed roller bearing structure
  • Part NO.

    Open type:XU080264

  • Dimension

    di:215.9mm

    Da:311mm

    H:25.4mm

  • Mounting

    Li:231.8mm

    La:295.3mm

  • Basic Load Ratings

    Cr:57kN

    Cor:76kN

  • Gear Teeth

    m:-mm

    z:-mm

  • Equivalent Model

Mass:6.9kg
  • Features
  • Mounting
  • XU080264 detail specifications:

    Type of guide Roller
    Gear teeth Without
    Space retainer Yes
    Material GCr15/50Mn/42CrMo
    Standard lubrication method Grease lubrication
    Oil hole Yes
    Sealing NBR sealing at both sides
    Radial clearance 0.01 ~ 0.05mm
    Rotation accuracy P5
    Working temperature -20℃ ~ +80℃



    XU080264 crossed roller bearing features:

    1. Without gear teeth.

    2. Support high radial loads, moderate axial loads and tilting moment loads.

    3. High rigidity & running accuracy.

    4. Easy installation, bearings can be screw mounted directly to the adjacent construction.

  • XU080264 slewing bearing installation instructions

    1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
    2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts.
    3. If large number of radial load and/or moment is applied, it is recommended to prepare flange part as Fig.4.
