• XU120179 crossed roller bearing
  • XU120179 slewing bearings
  • INA XU120179 bearing
  • XU120179 bearing structure
  • Part NO.

    Open type:XU120179

  • Dimension




  • Mounting



  • Basic Load Ratings



  • Gear Teeth



  • Equivalent Model

  • Features
  • Mounting
  • XU120179 crossed roller bearing specifications:

    Type of guide Roller
    Gear teeth Without
    Space retainer Yes
    Material GCr15/50Mn/C45N
    Standard lubrication method Grease lubrication
    Oil hole Yes
    Sealing NBR sealing at both sides
    Preload 0 ~ 0.02mm
    Rotation accuracy P5
    Working temperature -20℃ ~ +80℃

    More XU crossed roller bearing models


    XU120179 crossed roller bearing features:

    1. High stiffness, resistant to shock loads.

    2. Support high radial loads, moderate axial loads and tilting moment loads.

    3. High rigidity & running accuracy.

    4. Suited for both inner and outer ring rotation.

    5. Easy installation, bearings can be screw mounted directly to the adjacent construction.


    Advantage of XU crossed roller slew bearings

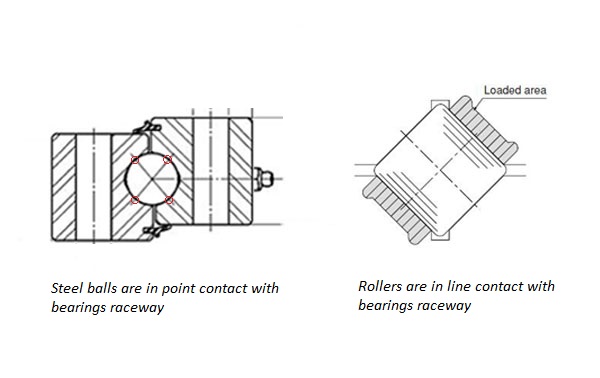

    ball slewing bearing and cross roller bearing compare

    1. Crossed roller bearings can withstand radial and axial loads at the same time, one bearing equals two common bearings.

    2. Rollers of crossed roller bearings are in line-contact with the raceway, while steel balls of the ball slewing bearings are in point-contact with raceway, so cross roller bearings have higher loading capacity and stiffness.

    3. Cross roller bearings have low grease consumption due to high rotation efficiency and low heat dissipation, so its maintenance interval is longer.

    4. Provide extremely high rotation accuracy, negative clearance available.


  • XU120179 slewing bearing installation instructions

    xu120179 crossed roller bearing mountingXU120179 bearing install1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
    2.Fix the inner and outer rings in the axial direction directly to the mounting surface by fixing bolts.
    3. If large number of radial load and/or moment is applied, it is recommended to prepare flange part as Fig.4.
